Pistons & Cylinders

pISTONS & CYLINDERS for Porsche 356 - 912

Pistons are one of the most important components in engines. All our pistons are modeled and designed exactly according to the 3D CAD models of the JPS Aircooled cylinder head.



Complete CNC machining of the piston on the outside and inside. So we are able to reduce the piston weight to an absolute minimum without reducing the stability or durability of the piston.


Kolben sind eine der wichtigsten Komponenten in Motoren. Alle unsere Kolben werden exakt nach den 3D-CAD-Modellen des JPS Aircooled Zylinderkopfes modelliert und konstruiert.



Komplette CNC-Bearbeitung des Kolbens auf der Außen- und Innenseite. Somit sind wir in der Lage, das Gewicht des Kolbens auf ein absolutes Minimum zu reduzieren, ohne die Stabilität oder Haltbarkeit des Kolbens zu beeinträchtigen.

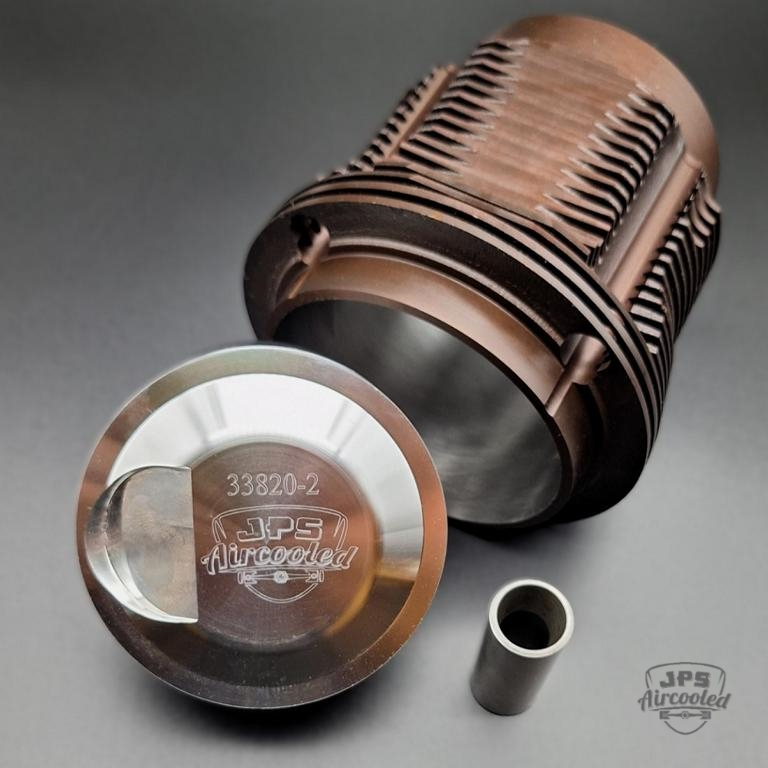

JPS Aircooled PISTONS & CYLINDERS - 91mm

1925 CC

CR: 10,5:1 with JPS Aircooled Cylinder Heads.


JPS Aircooled 91mm PISTONS are CNC milled high-tech Pistons with great features like:

  • Piston weigth: 327 grams
  • 22mm precision lightweight wrist pins
  • Underhead milling (reduce weight)
  • Internal Milling 3D milling
  • Shelf milling
  • Plunge Bosses milling (pocket under wrist pin)
  • Skirt Coating
  • Anti-detonation grooves
  • Accumulator groove
  • 1mm - 1,2mm - 2,5mm rings.
  • Laser logo

All these features make our pistons a class of their own!



CNC precision cast CYLINDERS are machined and honed in Switzerland.

  • The CYLINDERS are absolutely straight up and round when torqued with 30Nm
  • The finish honing is perfect for the use of the 1.0/1.2/2.5mm piston rings package
  • Case machining to our instructions give you a perfect base and sealing surface
  • You will get exactly 1mm deck height
  • No cooper sealing rings necessary, because all is straight and parallel
  • Many years in use
  • Stock head studs can be used

set € 2'890.00



JPS Aircooled PISTONS & CYLINDERS  - 94mm

2054 CC



CR: 10,5:1 with JPS Aircooled Cylinder Heads




JPS Aircooled 94mm PISTONS are CNC milled high-tech Pistons with great features like:

  • Piston weigth: 332 grams
  • 22mm precision lightweight wrist pins
  • Underhead milling (reduce weight)
  • Internal Milling 3D milling
  • Shelf milling
  • Plunge Bosses milling (pocket under wrist pin)
  • Skirt Coating
  • Anti-detonation grooves
  • Accumulator groove
  • 1mm - 1,2mm - 2,5mm rings.
  • Laser logo

All these features make our pistons a class of their own!



CNC precision cast CYLINDERS are machined and honed in Switzerland.

  • The CYLINDERS are absolutely straight up and round when torqued
  • The finish honing is perfect for the use of the 1.0/1.2/2.5mm piston rings package
  • Case machining to our instructions give you a perfect base and sealing surface
  • You will get exactly 1mm deck height
  • No cooper sealing rings necessary, because all is straight and parallel
  • Many years in use
  • Stock head studs can be used

This parts are included:

  • 16 Special Cylinder Head studs
  • 8 pcs special Cylinder Head nuts in exchange!
  • 8 pcs special Cylinder Head nuts new

set € 3'700.00



JPS AIRCOOLED  Pistons & CYLINDERS - 86mm

1720cc

CR: 11:1 with JPS Aircooled Cylinder Heads


JPS Aircooled 86mm PISTONS are CNC milled high-tech Pistons with great features like:

  • 22mm precision lightweight wrist pins
  • Underhead milling (reduce weight)
  • Internal Milling 3D milling
  • Shelf milling
  • Plunge Bosses milling (pocket under wrist pin)
  • Skirt Coating
  • Anti-detonation grooves
  • Accumulator groove
  • 1mm - 1,2mm - 2,5mm rings
  • Laser logo

All these features make our pistons a class of their own.



CYLINDERS are Shasta Durabar Zylinder

set € tbd



JPS AIRCOOLED  Pistons & Cylinders

91 mm   "Racing"

1925cc

CR: 12.5:1 with JPS Aircooled Cylinder Heads


JPS Aircooled 91mm RACING PISTONS are CNC milled high-tech Pistons with great features like:

  • Piston weigth: 335 grams
  • 22mm precision lightweight wrist pins
  • 3D dom milling
    100% fits in our high-performance Cylinder Heads
  • 3D internal milling (reduce weight)
  • Underhead milling (reduce weight)
  • Shelf milling
  • Plunge bosses milling (pocket under wrist pin)
  • Skirt Coating
  • Anti-detonation grooves
  • Accumulator groove
  • 1mm - 1,2mm - 2,5mm rings
  • Laser logo

All these features make our pistons a class of their own.

CNC precision cast CYLINDERS are machined and honed in Switzerland.

  • The CYLINDERS are absolutely straight up and round when torqued
  • The finish honing is perfect for the use of the 1.0/1.2/2.5mm piston rings package
  • Case machining to our instructions give you a perfect base and sealing surface
  • You will get exactly 1mm deck height
  • No cooper sealing rings necessary, because all is straight and parallel
  • Many years in use
  • Stock head studs can be used

set € tbd



JPS AIRCOOLED  Pistons & CYLINDERS

82.95 mm - Racing
FIA Europa

1599cc

On request, any compression ratio available


JPS Aircooled 82.95mm RACING PISTONS are CNC milled high-tech Pistons with great features like:

  • 22mm precision lightweight wrist pins
  • Underhead milling (reduce weight)
  • Internal Milling 3D milling
  • Shelf milling
  • Plunge Bosses milling (pocket under wrist pin)
  • Skirt Coating
  • Anti-detonation grooves
  • Accumulator groove
  • 1mm - 1,2mm - 2,5mm rings
  • Laser logo

All these features make our pistons a class of their own.

CYLINDERS are made from original Porsche 356 cylinders

set € tbd



Nicasil Aluminium Cylinder

Made by LN Engineering

LN Engineering’s Nickies - The original and genuine solid aluminum CNC billet NSC-plated cylinders provide increased strength and cooling, allowing for increased displacement and performance without compromising reliability.



The 91mm Porsche 356 Nickies are very nice solution for JPS Aircooled SPORT PLUS 91mm BILLET CYLINDER HEADS.



Price without Pistons must be ordered separately!

set € on request



JPS AIRCOOLED Pistons
91 mm

1925cc

Compression 10.5:1



With special permanent coating for Nicasil cylinders

this coating is the most advanced on the market, used in: F1, DTM, Indy-Car, Rallysport, Paris Dakar, Superbike


JPS Aircooled 91mm PISTONS are CNC milled high-tech Pistons with great features like:

  • Piston weigth: 327 grams
  • 22mm precision lightweight wrist pins
  • Underhead milling (reduce weight)
  • Internal Milling 3D milling
  • Shelf milling
  • Plunge Bosses milling(pocket under wrist pin)
  • Skirt Coating
  • Anti-detonation grooves
  • Accumulator groove
  • 1mm - 1,2mm - 2,5mm rings.
  • Laser logo

All these features make our pistons a class of their own.

set € 1'795.00
