JPS Aircooled Cylinder heads
356 - 912 CNC Billet Heads high Performance
High quality Engine parts for 356-912

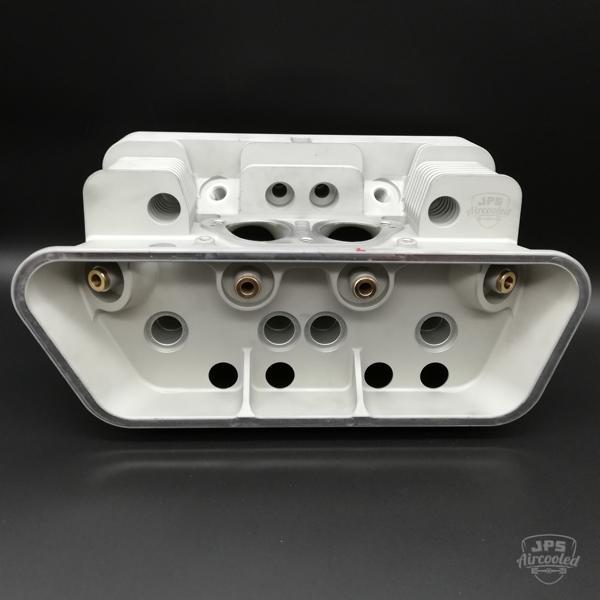

CNC BILLET CYLINDER HEADS are well designed for high performance. JPS Aircooled CYLINDER HEADS are CNC high-tech parts and compledly manufactured in Switzerland. These Billet CYLINDER HEADS are flow bench tested with a lot of improvements.
JPS AIRCOOLED
356 – 912 BILLET CYLINDER HEADS
SPORT Plus
Available for Ø 91/93/94mm Piston & Cylinders ready to install
Our CNC BILLET CYLINDER HEADS are made of the best available material for Cylinder heads
Billet aluminum has huge advantages over cast aluminum:
- Tensile Strength Yield,
Billet 276MPa (+67%) Cast Yield 165MPa - Tensile Strength Ultimate,
Billet 310MPa (+33%) Cast Yield 234MPa - Elongation at Break,
Billet 17% (+400%) Cast 3,5%
In simple words no cracking, more strength!
Leave the Cast in the Past!
Our CYLINDER HEADS are flow bench developed and tested and outperform any stock 356 cylinder heads by far.
If you are looking for the best solution for your 356 - 912, JPS Aircooled CYLINDER HEADS are the solution for that.
- Flow bench developed intake and exhaust canal
- Optimized combustion chamber
- 42/35mm or 44/35mm 8mm stem valves for maximum torque and high performance
- Titanium retainers
- Double Valve springs
- Manganese Valve guides
- Only the finest materials and parts are used!
Complete manufactured in Switzerland and assembled ready to use!
Available option: Twin spark
pair € 4'190.00
option, twin sparks + € 150.00
JPS AIRCOOLED
356 – 912 BILLET CYLINDER HEAD racing
Available for Ø82,5mm, Ø82,95mm (FIA 1600cc), Ø83,5mm SCCA and Ø86mm Piston & Cylinders
Our CNC BILLET CYLINDER HEADS are the billet version of famous Vic Skirmants Racing Cylinder Heads and have been excessively flow bench tested.
The combustion chamber as well as the intake and exhaust channels have been completely redesigned for maximum performance and high gas velocity.
- All components are race tested and of the best available quality!
- Special manufactured Manley High Performance valves for Intake and exhaust.
- 40mm Intake and 34mm exhaust with 8mm stem
- 12mm long spark plug
- OTEVA double valve springs
- Valve springs to rev up to 8000 rpm
- Titanium retainers
- Super grip locks
- Manganese valve guides
All these components and modifications with the advantages of billet aluminum makes these JPS Aircooled CYLINDER HEADS to a race winner.
pair € 4'790.00
JPS AIRCOOLED
356 – 912 BILLET CYLINDER HEADS
SPORT Plus - Wilhoit
Available for Ø91mm Piston & Cylinders WR 2185 cc (91x84mm) Kit
After several requests we decided to build JPS Aircooled Billet Cylinderheads that fits on WR 2,2l Kit.
JPS Aircooled Ltd Billet Cylinderheads have 42/35mm Valves, Double Valve Springs, Titanium Retainers as Standard!
Our Cylinderheads outperform any available Cylinderhead, run cooler and will never crack.
With our new Milling strategy we are able to mill surfaces like polished. Combustion Chamber Volume is 71,5cc on all 4 exactly the same, Intake channel volume too.
With JPS Aircooled Billet Manifolds with O-Ring Sealing and Valve Covers you will have the Best available combo!
pair € 4'290.00
DON'T HESITATE TO ASK AND CONTACT US :-)
